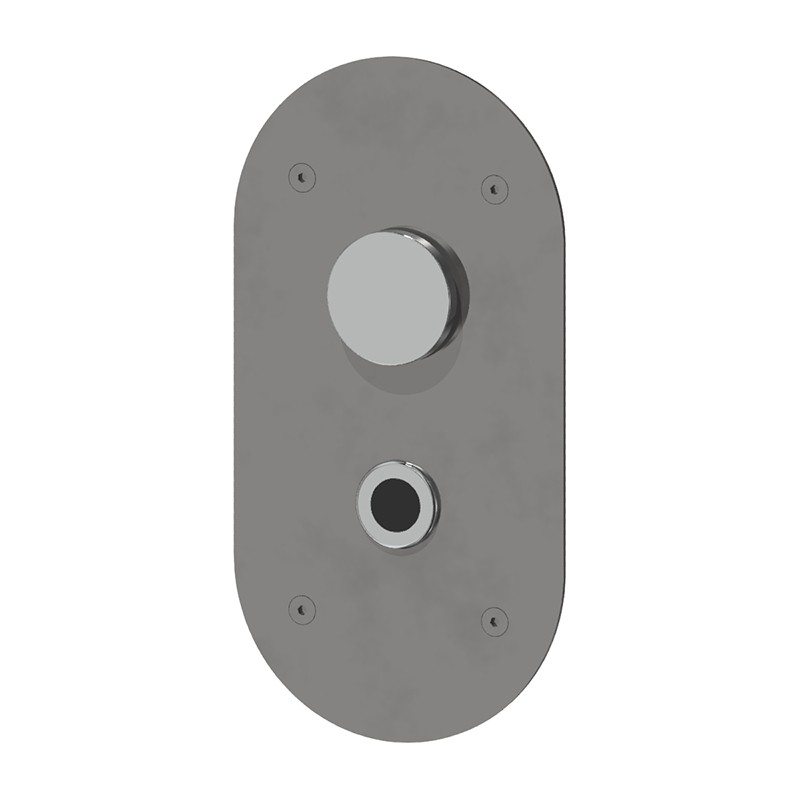

700 series concealed wall mounted WC electronic flush valve and manual press button, 230V mains supply

Technical sheet Instructions
700 series concealed wall mounted WC electronic flush valve and manual press button, 230V mains supply
search
  • 700 series concealed wall mounted WC electronic flush valve and manual press button, 230V mains supply

COD 700.B8/R

Features

  • Built-in box in plastic
  • Adjustable built-in position from 0 to 25mm
  • Vandal-proof cover plate in polished stainless steel AISI 304
  • Permanent infrared sensor with flushing after user moves away
  • Concealed 230V AC / 6V DC power supply
  • Solenoid valve 6V
  • Manual flush device, that can be operated if there is no power supply

Description

Idral's 700 series photocell flush-mounted WC electronic flow meter with manual bypass model 700.B8/R is a modern and efficient solution for water control in WCs. This device features a plastic flush-mounted box, adjustable from 0 to 25 mm, which fits perfectly on the wall. The vandal-proof cover plate in polished AISI 304 stainless steel guarantees strength and durability. The permanently installed photocell control allows the water to be automatically drained after the user leaves, providing a hygienic and contact-free experience. Power is supplied by a built-in 230V AC / 6V DC power supply, while the 6V solenoid valve ensures precise operation. In the event of a power failure, a manual pressure relief device is available.

Download

Made in Italy
