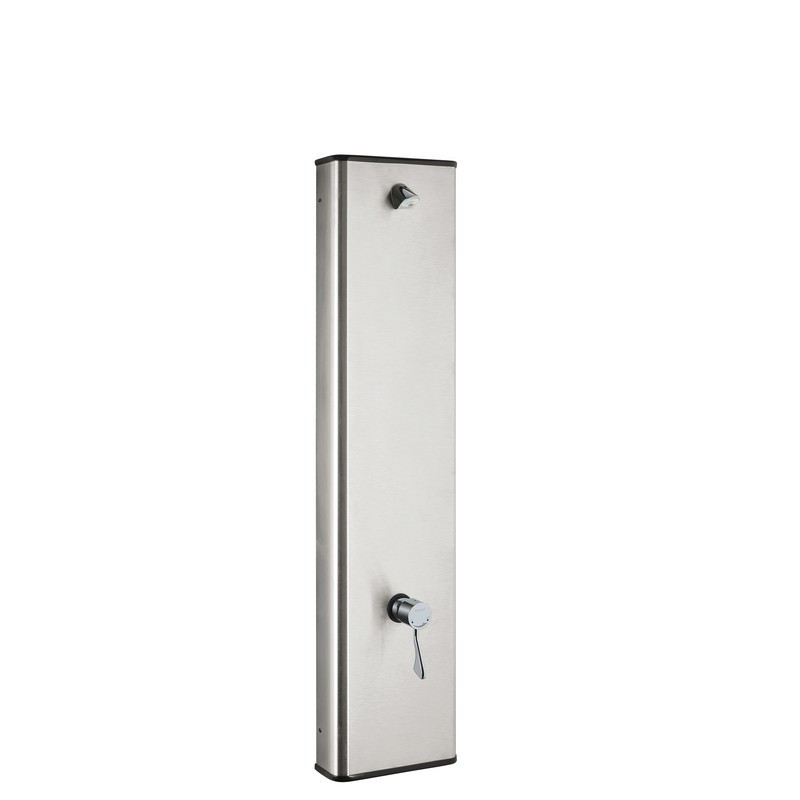

Stainless steel AISI304 shower panel with thermostatic progressive mixer with clinical lever.

The Idral 900.92 shower panel with progressive thermostatic mixer is the ideal solution to guarantee safety, resistance and comfort in public and community environments. Made of AISI304 stainless steel, it offers constant temperature and water flow control, reducing the risk of scalding. The compact and robust design, combined with high quality professional components, ensures long life and ease of use, making it perfect for healthcare, sports and community facilities.

COMPOSITION:

• Chrome-plated brass tap
• TMV3 progressive thermostatic cartridge
• Integrated check valves and filters
• Integrated shut-off valves
• Vandal-proof chrome plated shower head

FUNCTIONAL FEATURES:

• Supply pressure: Min 1 - max 5 bar
• Hot water supply temperature: 50 - 63 °C (55 - 60 °C recommended)
• Cold water supply temperature: 5 - 20 °C
• Minimum differential temperature (hot-mixed): 10 °C
• Adjustment range: 15 - MAX °C
• Adjustment tolerance: ± 2 °C
• Maximum selectable temperature (factory setting): 38 ± 1 °C, adjustable

• Technical sheet (format file .pdf - 248.1KB)
• Spare parts sheet (format file .pdf - 175.54KB)
• Instructions (format file .pdf - 1.39MB)
