Public bathrooms are high-traffic spaces that must combine functionality, hygiene and durability. Today, more than ever, the adoption of technology and automation is essential to improve the user experience, facilitate installation and simplify maintenance. Idral's multifunctional electronic consoles, such as the 4ALL series, are the ideal solution for designing modern, efficient and easy-to-operate hygienic spaces.
In this article, we will explore how to design a public toilet with Idral solutions, providing detailed information on dimensions, layout, battery installation possibilities, system flexibility and installation techniques.
1. Dimensions and Layout of the Public Bathroom
To design a functional and efficient public bathroom with Idral electronic consoles, it is essential to consider several factors: available space, number of intended users and accessibility.

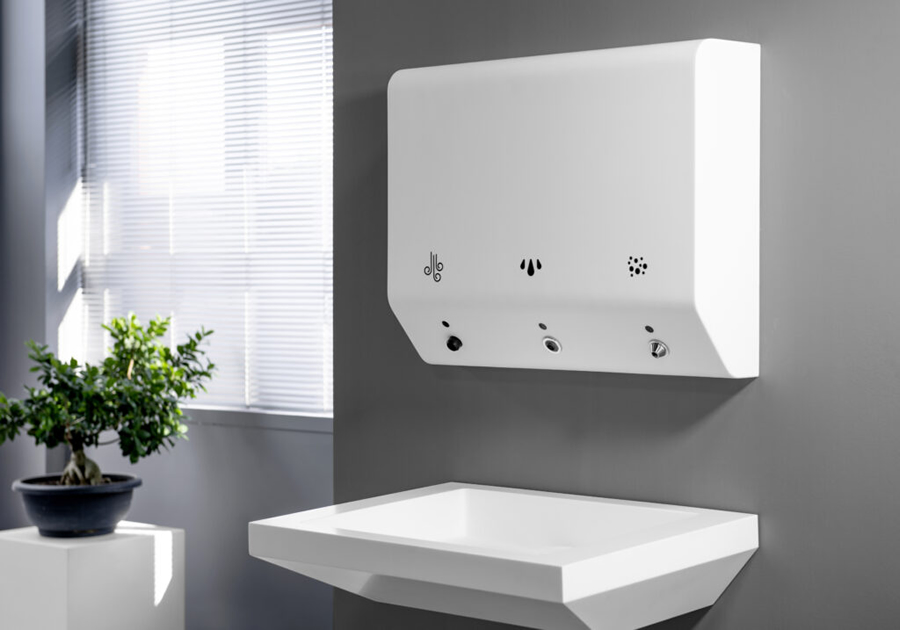

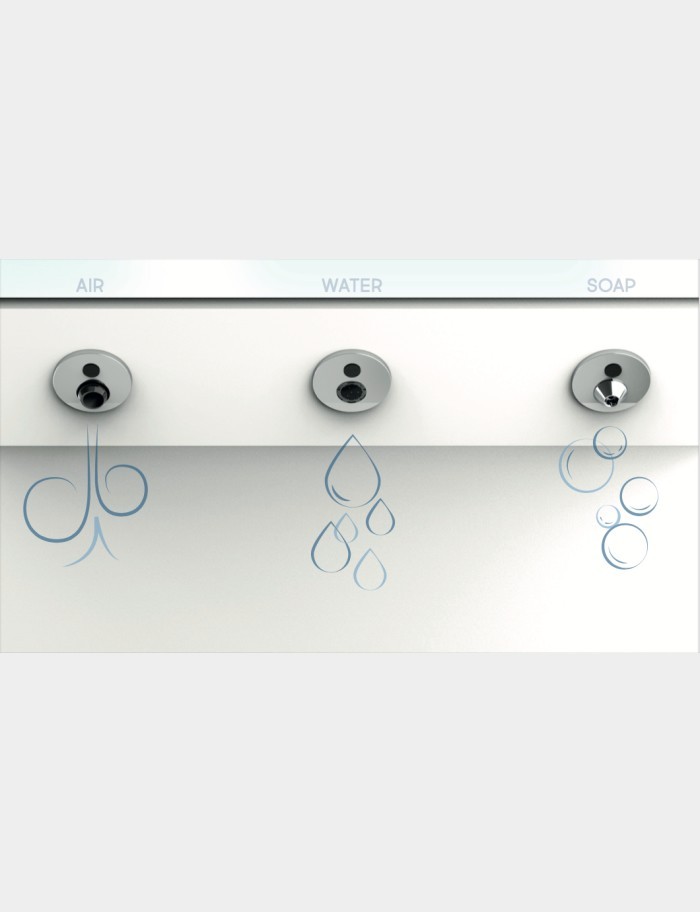

Idral's 4ALL multifunctional systems are equipped with water, soap and hand dryer dispensers with electronic photocell control. There are versions with and without wash basin.
The dimensions of these units are compact and designed to fit into small spaces. Here are some design guidelines:
- Minimum depth: The minimum depth for inserting the technical kits for water, air and soap dispensers must be 17 cm. Normally, the kits are concealed behind mirrors to ensure easy accessibility during maintenance operations. However, it is possible to develop, in cooperation with the customer, designs whereby the technical kit is installed behind the walls, thus allowing the application of thinner mirrors and making the design more minimalist.

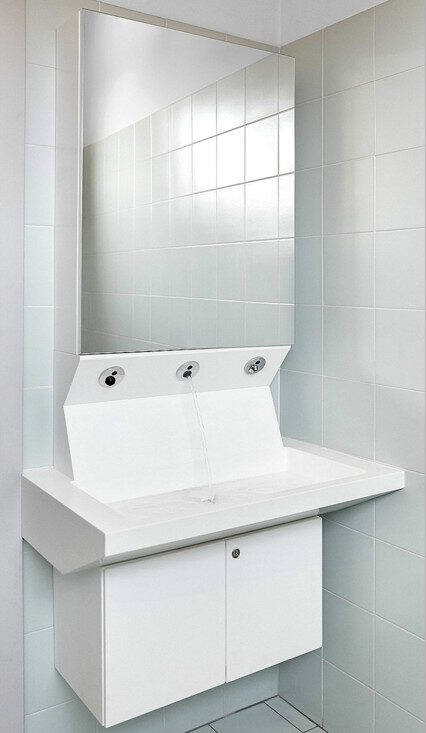

- Width: The width varies according to the model chosen. In the catalogue, the dimensions available for the various models range from 627 mm to 700 mm. However, if you wish to accommodate the technical kit behind the mirror, you cannot go below the minimum size of 627 mm. In the configuration with integrated washbasins, the minimum dimension for a functional station that ensures convenient and comfortable use for the user is 800 mm. This dimension also ensures hygiene and practicality by preventing splashes from falling to the floor.
2. Possibility of Battery Installation (series installation of several units)
One of the most versatile features of Idral consoles is the possibility of installing the units in batteries, an ideal solution for environments with a high flow of users, such as stations, airports and shopping centres.
- Distance between stations: In a battery of 4ALL kits, regardless of the type, the minimum distance between one mirror and another is 25 mm. As far as washbasins are concerned, it is possible to realise continuous sets without any gap, ideally up to 3 linear metres. In some cases, you can go beyond this length, but you will need to carefully organise transport and installation, which will be more complex.
In any case, Idral provides its own teams of qualified installers for laying and welding on site. This makes it possible to assemble several sink sections and join them directly on site, guaranteeing the customer a continuous line of sinks, without any visible joint lines.
3. Design Flexibility: Dispensers or Complete System
Idral's integrated systems offer a high degree of flexibility, allowing designers to choose between:
- Dispensers only: For environments that require quick and functional solutions, without an integrated sink.
- Complete system: Includes the sink, soap dispensers and hand dryers, creating a fully automatic and integrated solution.
This flexibility allows the system to be adapted to the specific needs of the project, balancing functionality, aesthetics and budget.
In this article you will find all the details to find the best solution for you.
4. Important Design Considerations
During the design phase, it is essential to consider the following aspects:
- Accessibility: Ensure that all units are easily accessible to people with disabilities. The height of console tops must be ergonomic. For persons with reduced mobility, we recommend a height of 80 cm.
- Sustainability and water saving: Idral systems are designed with electronic functions that reduce water waste. These include flow limiters for the taps, which normally guarantee a supply of 6 l/min, but can be adjusted down to 1.3 l/min. There is also built-in anti-vandalism software that allows automatic shut-off to prevent continuous dispensing.
- Hygiene: No-touch IR sensors allow the station to be used without touching anything within the bathroom environment. Automatic anti-reflux dispensing every 24 hours since last use helps keep the system hygienic without waste. In addition, the materials used and the designs developed ensure easy cleaning and prevent dirt from settling in. The solid surface used is also antibacterial.
5. Technical Requirements for the Installation of Idral Multifunctional Modules
The installation of a 4ALL EASY-COMPACT multifunctional system requires some technical requirements:
- Preparation of the installation area: Check that the walls are strong and suitable to support the weight of the consoles. Prepare the electrical and hydraulic connections according to the project specifications.
- Support structure: Consoles must be firmly fixed to the wall to ensure stability and safety during use.
- Power supply: The system must be connected to a 230 V power supply. The power supply for the water and soap dispenser operates at low voltage (6 V) via the power supply units supplied.
- Waterconnection: Connect the water supply, ensuring that the system has stable pressure for proper operation.
- Soap tank: Fill the tank with a soap compatible with the characteristics required by the system. The peristaltic pump will ensure a constant flow without waste.
- Check and test: After installation, carry out a complete test to ensure that all devices are working properly. Check in particular the photocell activation, the delivery of water, soap and towels, and the correct anti-vandal locking.
6. Maintenance of Idral Integrated Systems: Tips for Long Life
Idral electronic consoles are designed to last and are easy to maintain. Here are a few tips to ensure the proper functioning of the system:
- Regular inspections: Check the electronic and hydraulic devices periodically, making sure there are no leaks, malfunctions or delivery problems.
- Cleaning: Carry out regular cleaning of external surfaces and soap dispensers to avoid dirt build-up and ensure hygiene.
Designing and implementing a public bathroom with Idral's multifunctional electronic modules is a smart choice to create modern, hygienic and functional environments. The versatility of the solutions, the ease of installation and maintenance, and the possibility to customise the system according to specific needs make these consoles ideal for any type of project. By following these guidelines, designers will be able to create efficient and highly hygienic spaces for all users.
